型號：LSQ-TNV 開閉式液壓快速接頭(碳鋼)(新)
產品詳情
LSQ-TNV系列廣泛應用于各種工業所需的連接，主要用于建筑設備、森林設備、農業機械、液壓機具、鋼鐵設備及其它所需的液壓應用。
LSQ-TNV系列接頭具有以下特征:
1、閥型式： 錐面閥。
2、連接/斷開方式，回推外套。
3、接頭斷開時，閥芯自動閉合，防止泄漏。
4、關鍵部件經過感應淬火，所以耐用性好。
5、并與下列產品互換：(FASTER)TNV系列。

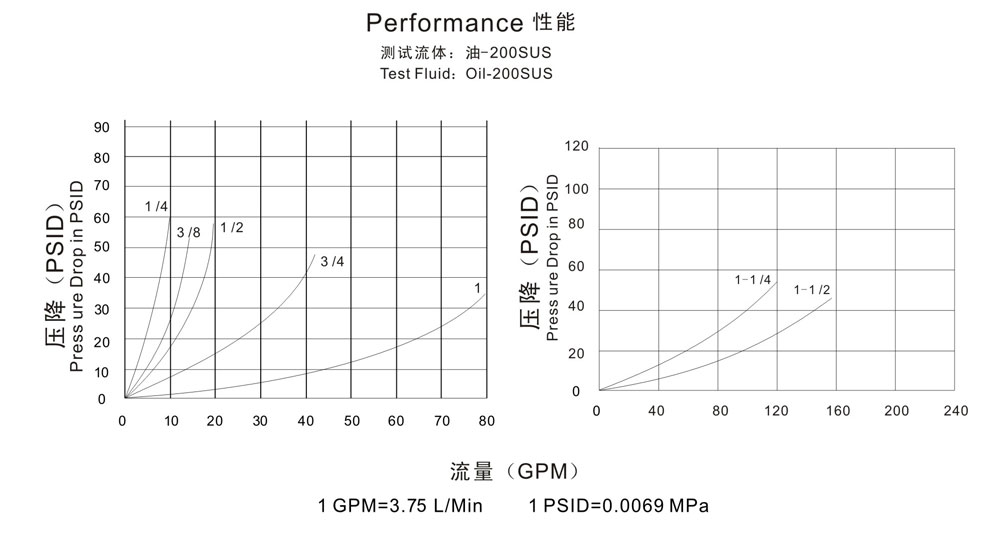

| 規格(英寸) | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1/4 | 1/2 |
| 額定壓力(PSI) | 3915 | 4350 | 3190 | 2755 | 2155 | 1590 | 1590 |
| 額定流量(GPM) | 6 | 17 | 20 | 45 | 74 | 100 | 119 |
| 溫度范圍 | -30℃至+120℃ | ||||||
| 標準密封圈材料 | 丁腈橡膠 NBR | ||||||
| PARTNO. | LS | D | A | HEX1 | T |

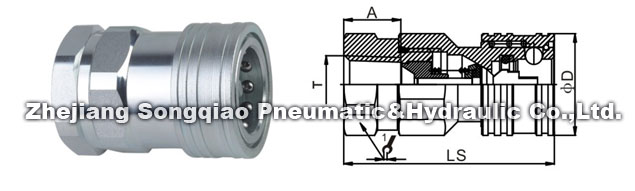

| LSQ-TNV-02SF | 49.8 | Φ24 | 13.5 | S22對邊 | NPT1/4 |
| LSQ-TNV-03SF | 57.3 | Φ27 | 12.5 | S24對邊 | NPT3/8 |
| LSQ-TNV-04SF | 64.4 | Φ34 | 17.5 | S30對邊 | NPT1/2 |
| LSQ-TNV-06SF | 64.2 | Φ42 | 16 | S36對邊 | NPT3/4 |
| LSQ-TNV-08SF | 71 | Φ50.5 | 21 | S46對邊 | NPT1 |
| LSQ-TNV-10SF | 96.5 | Φ56 | 21.5 | S50對邊 | NPT1-1/4 |
| LSQ-TNV-12SF | 90.2 | Φ70 | 23.5 | S65對邊 | NPT1-1/2 |
| PARTNO. | LP | d | A | HEX2 | HEX2 | T |

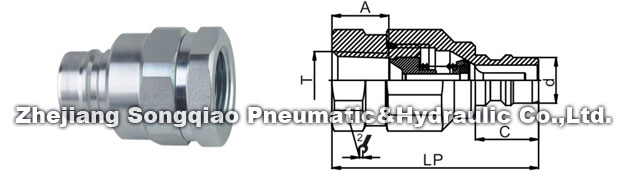

| LSQ-TNV-02PF | 49 | Φ10.8 | 13.5 | S22對邊 | S22對邊 | NPT1/4 |
| LSQ-TNV-03PF | 57.3 | Φ13 | 12.5 | S24對邊 | S24對邊 | NPT3/8 |
| LSQ-TNV-04PF | 62.3 | Φ16 | 17.5 | S30對邊 | S30對邊 | NPT1/2 |
| LSQ-TNV-06PF | 63.5 | Φ23.4 | 16 | S36對邊 | S36對邊 | NPT3/4 |
| LSQ-TNV-08PF | 68.4 | Φ29.5 | 21 | S46對邊 | S46對邊 | NPT1 |
| LSQ-TNV-10PF | 91 | Φ36.1 | 21.5 | S50對邊 | S50對邊 | NPT1-1/4 |
| LSQ-TNV-12PF | 85 | Φ43.6 | 23.5 | S65對邊 | S65對邊 | NPT1-1/2 |
| PARTNO. | L | D | A | HEX1 | HEX2 | T |
| LSQ-TNV-02 | 84.2 | Φ24 | 13.5 | S22對邊 | S22對邊 | NPT1/4 |
| LSQ-TNV-03 | 96.7 | Φ27 | 12.5 | S24對邊 | S24對邊 | NPT3/8 |
| LSQ-TNV-04 | 109 | Φ34 | 17.5 | S30對邊 | S30對邊 | NPT1/2 |
| LSQ-TNV-06 | 105.8 | Φ42 | 16 | S36對邊 | S36對邊 | NPT3/4 |
| LSQ-TNV-08 | 116.7 | Φ50.5 | 21 | S46對邊 | S46對邊 | NPT1 |
| LSQ-TNV-10 | 164.8 | Φ56 | 21.5 | S50對邊 | S50對邊 | NPT1-1/4 |
| LSQ-TNV-12 | 148.8 | Φ70 | 23.5 | S65對邊 | S65對邊 | NPT1-1/2 |
