描述: LSQ-CC開閉式氣動快速接頭(銅)
→產品描述:多組規格,使用介質用顏色區分,藍色用于二氧化碳,紅色用于乙炔,綠色用于氧氣,無塑料顏色套的用于水和空氣。
→技術優勢:對現場多種介質管路的接頭用顏色區分,而且每種設計尺寸不同,徹底防止誤插入而引起的混亂,靈活易捷,確保安全。
→產品應用:造船行業,船務維修行業以及各種需避免介質混亂誤插隊工業系統。
→工作壓力:1.0Mpa
→工作溫度:-20℃+120℃

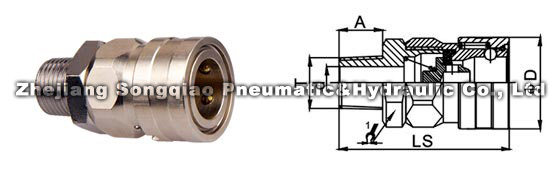

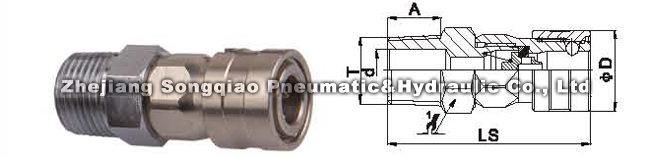

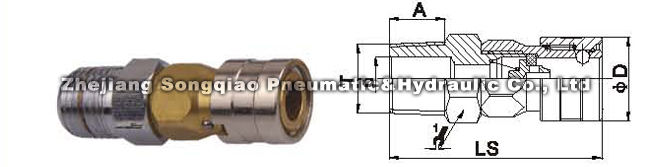

PARTNO. | LS | ¢D | HEX1 | A | T | D |
LSQ-CC1-SM | 66.2 | 36 | 30 | 17 | ZG1/2 | ¢13 |
PARTNO. | LS | A | C | CP | ¢T | D |
LSQ-CC3-PH | 65.6 | 34 | 23.5 | ¢22 | 14 | ¢12.8 |

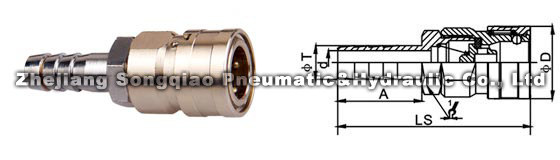

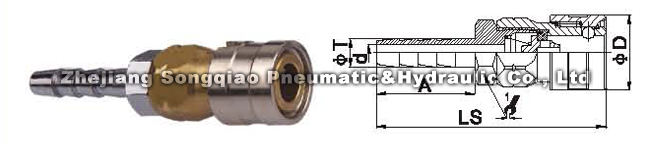

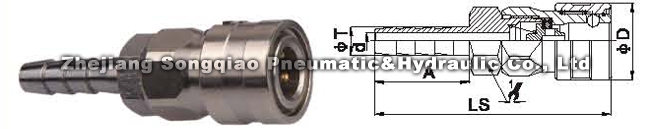

PARTNO. | LS | ¢D | HEX1 | A | ¢T | D |
LSQ-CC4-SH | 80 | 30 | 24 | 36 | 13.5 | ¢9.5 |

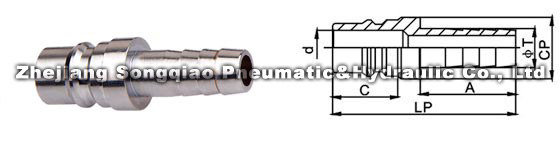

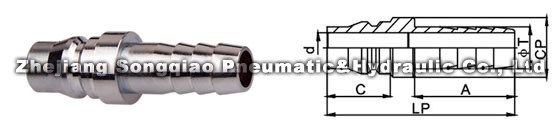

PARTNO. | LP | A | C | CP | ¢T | d |
LSQ-CC2-PH | 63 | 33.5 | 21.5 | ¢20 | 14 | ¢10 |
PARTNO. | LP | ¢D | HEX1 | A | T | d |
LSQ-CC5-SM | 59 | 25.5 | 22 | 16 | ZG1/2 | ¢14 |

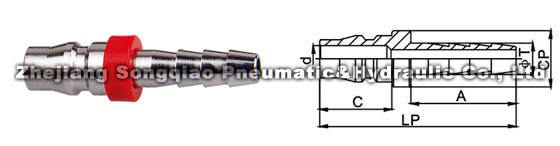

PARTNO. | LP | A | C | CP | ¢T | d |
LSQ-CC6-PH | 56 | 30 | 20.5 | ¢22 | 9 | ¢7.5 |

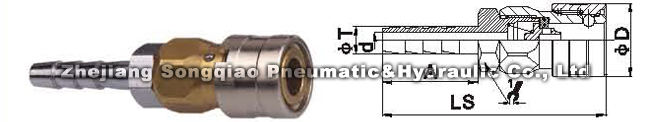

PARTNO. | LS | ¢D | HEX1 | A | ¢T | D |
LSQ-CC7-SH | 72.7 | 24 | 17 | 31 | 8.5 | ¢5 |
PARTNO. | LS | ¢D | HEX1 | A | T | D |
LSQ-CC10-SH | 72.7 | 24 | 17 | 31 | 8.5 | ¢5 |
PARTNO. | LS | ¢D | HEX1 | A | T | D |
LSQ-CC8-SM | 60.5 | 24 | 22 | 16 | zg1/2 | ¢12.5 |

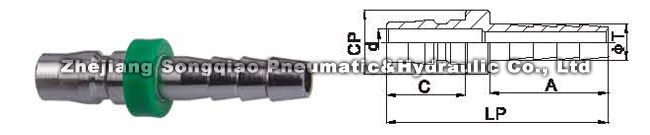

PARTNO. | LP | A | C | CP | ¢T | D |
LSQ-CC9-PH | 56 | 30 | 19.8 | ¢16 | 9 | ¢6.3 |

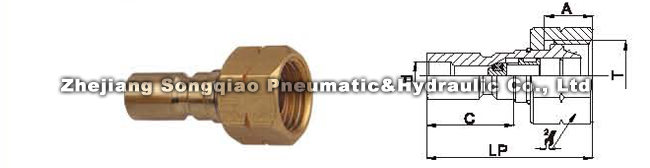

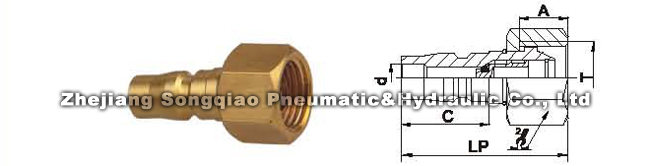

PARTNO. | LP | A | C | HEX2 | T | D |
LSQ-CC14-PF | 37.8 | 11 | 19.8 | 19 | M16*1.5左 | ¢6.3 |
PARTNO. | LS | ¢D | HEX1 | A | ¢T | D |
LSQ-CC13-SH | 74.5 | 24 | 17 | 30 | 8.5 | ¢5 |
PARTNO. | LS | ¢D | HEX1 | A | ¢T | D |
LSQ-CC11-SM | 60.5 | 24 | 22 | 16 | zg1/2 | ¢12.5 |
PARTNO. | LP | A | C | CP | ¢T | D |
LSQ-CC12-PH | 56 | 30 | 20 | ¢16 | 9 | ¢6.4 |
PARTNO. | LP | A | C | HEX1 | T | D |
LSQ-CC15-PF | 38 | 11 | 20 | 19 | M16*1.5 | ¢6.4 |
