LSQ-HX橫銷式氣動快速接頭(碳鋼、黃銅)
→產品描述:單手操作,使用介質用顏色區分,彩鍍用于空氣和水,紅色用于乙炔,綠色用于氧氣,藍色用于二氧化碳,德國廣泛應用。
→技術優勢:單手操作,鋼銷鎖緊設計。
→產品應用:造船行業,船務維修行業以及各種需避免介質混亂誤插隊工業系統。
→工作壓力:1.0Mpa
→工作溫度:-20℃+120℃

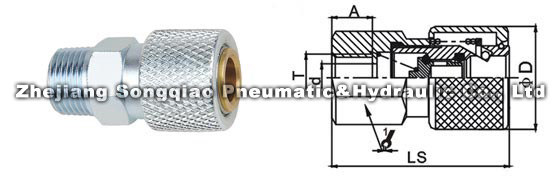

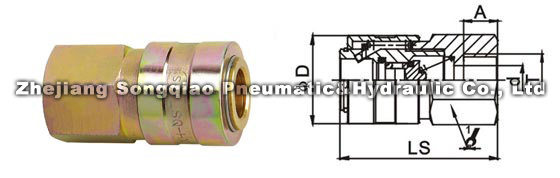

PARTNO. | LS | ¢D | HEX1 | A | T | d |
LSQ-HX-04SF | 64.8 | 36 | 32 | 14 | G1/2 | ¢12 |
LSQ-HX-06SF | 66 | 36 | 32 | 16 | G3/4 | ¢12 |

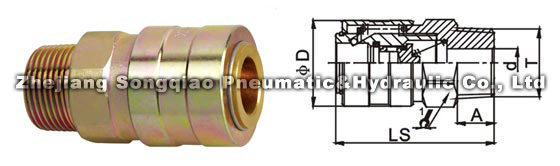

PARTNO. | LS | ¢D | HEX1 | A | T | d |
LSQ-HX-04SM | 66 | 36 | 32 | 14 | ZG1/2 | ¢12 |
LSQ-HX-06SM | 67.8 | 36 | 32 | 16 | ZG3/4 | ¢12 |

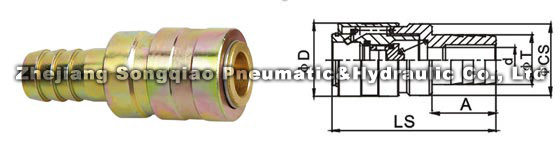

PARTNO. | LS | ¢D | HEX1 | A | ¢T | d |
LSQ-HX-04SH | 89.5 | 36 | 34 | 38 | 16 | ¢12 |
LSQ-HX-06SH | 89.5 | 36 | 34 | 38 | 21 | ¢12 |

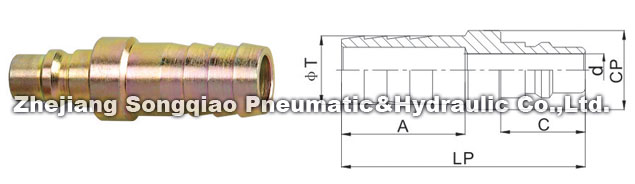

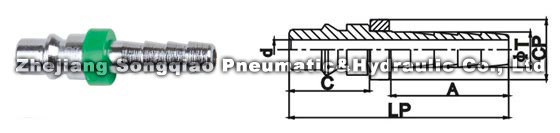

PARTNO. | LP | A | C | CP | ¢T | d |
LSQ-HX-03PH | 74 | 26 | 37 | 19.5 | 14 | ¢10 |
LSQ-HX-04PH | 73 | 26 | 36 | 19.5 | 16 | ¢10 |
LSQ-HX-06PH | 75 | 26 | 38 | 24 | 21 | ¢10 |

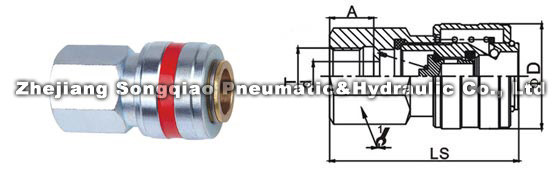

PARTNO. | LS | ¢D | HEX1 | A | T | d |
LSQ-HX-O2-SM | 52.4 | 30.4 | 24 | 14 | G1/2 | ¢8.3 |
PARTNO. | LP | C | CP | A | ¢T | d |
LSQ-HX-O2-PH | 56 | 20.5 | ¢16 | 30 | 9 | ¢5 |
PARTNO. | LS | ¢D | HEX1 | A | T | d |
LSQ-HX-KR-SF | 52 | 30.2 | 24 | 12 | G1/2 | ¢8.3 |
PARTNO. | LP | C | CP | A | ¢T | d |
LSQ-HX-KR-PH | 56 | 20.5 | ¢16 | 30 | 9 | ¢5 |

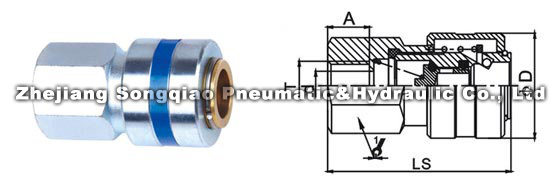

PARTNO. | LP | ¢D | HEX1 | A | T | d |
LSQ-HX-CO2-SF | 52 | 30.2 | 24 | 12 | G1/2 | ¢8.3 |

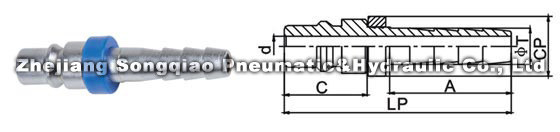

PARTNO. | LS | C | CP | A | ¢T | d |
LSQ-HX-CO2-PH | 56 | 20.5 | ¢16 | 30 | 9 | ¢5 |
