QKD156單開閉氣動快速接頭(中體)(碳鋼)
→產品描述:中國最為廣泛使用的連接頭型式。
→技術優勢:結構簡單,多種連接備選。
→產品應用:氣動工具,汽車工業,壓縮空氣,造船行業。
→工作壓力:1.0Mpa
→工作溫度:-20℃+120℃

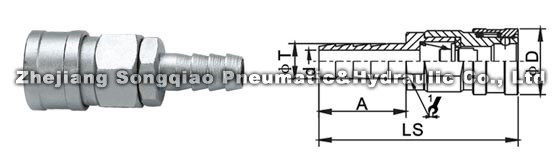

PARTNO. | LS | ¢D | HEX1 | A | ¢T | d |
QKD156-04SH | 77.5 | 30 | 24 | 30 | 16 | 10 |
QKD156-06SH | 87.5 | 30 | 24 | 40 | 20.5 | 14 |

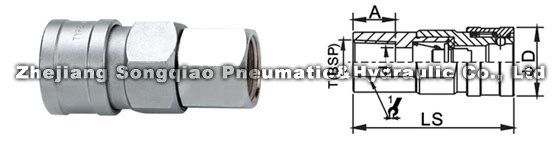

PARTNO. | LS | ¢D | HEX1 | A | T(BSP) | d |
QKD156-04SF | 63.5 | 30 | 24 | 14 | BSP1/2"14P | 12 |
QKD156-06SF | 65.5 | 30 | 30 | 16 | BSP3/4"14P | 12 |
PARTNO. | LS | ¢D | HEX1 | A | T(PT) | d |
QKD156-04SM | 65.5 | 30 | 24 | 14 | PT1/2"14P | 11 |
QKD156-06SM | 67.5 | 30 | 27 | 18 | PT3/4"14P | 11 |

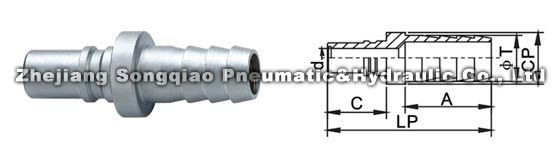

PARTNO. | LP | C | CP | A | ¢T | d |
QKD156-04PH | 65 | 27 | 24 | 30 | 16 | 8.5 |
QKD156-06PH | 75 | 27 | 24 | 40 | 20.5 | 8.5 |

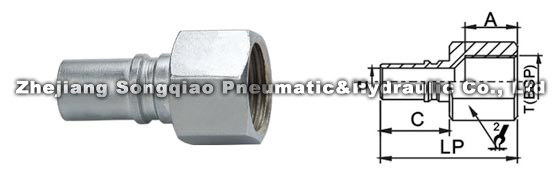

PARTNO. | LP | C | HEX2 | A | T(BPS) | d |
QKD156-04PF | 45 | 27 | 24 | 14 | BPS1/2"14P | 8.5 |
QKD156-06PF | 47 | 27 | 30 | 16 | BPS3/4"14P | 8.5 |

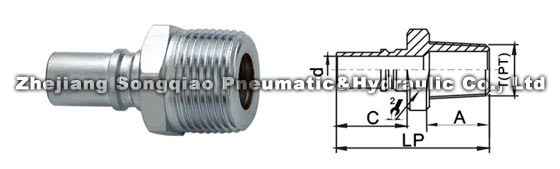

PARTNO. | LP | C | HEX2 | A | T(PT) | d |
QKD156-04PM | 50 | 27 | 22 | 16 | PT1/2"14P | 8.5 |
QKD156-06PM | 52 | 27 | 27 | 18 | PT3/4"14P | 8.5 |
