LAM 美式單開閉氣動快速接頭(黃銅)
→產品描述:ISO6150B標準。
→技術優勢:結構簡單,重量輕,多種連接備選。
→產品應用:氣動工具,汽車制造,壓縮空氣,工程機械,壓縮機。
→互換性:派克(PARKER)20系列、利達時(RECTUS)23KA系列、漢森(HANSEN)3000系列、希恩(CEJN)310系列。
→工作壓力:1.0Mpa
→工作溫度:-20℃+120℃

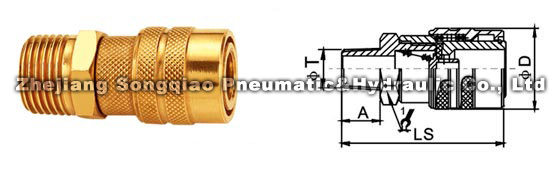

PARTNO. | LS | ¢D | HEX1 | A | T |
LAM-02SM | 51 | 25 | 19 | 12 | 1/4 |
LAM-03SM | 51 | 25 | 19 | 13 | 3/8 |
LAM-04SM | 53 | 25 | 22 | 14 | 1/2 |

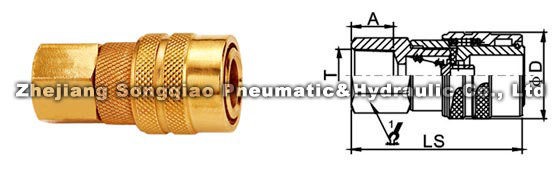

PARTNO. | LS | ¢D | HEX1 | A | T |
LAM-02SF | 49.5 | 25 | 19 | 12 | 1/4 |
LAM-03SF | 49.5 | 25 | 19 | 13 | 3/8 |
LAM-04SF | 49.5 | 25 | 24 | 15 | 1/2 |

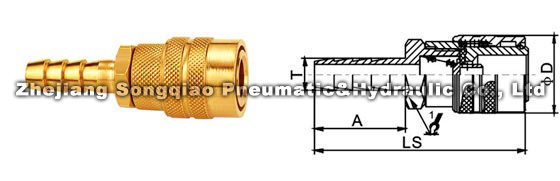

PARTNO. | LS | ¢D | HEX1 | A | T |
LAM-02SH | 66 | 25 | 19 | 28 | 9 |
LAM-03SH | 68 | 25 | 19 | 30 | 10.5 |
LAM-04SH | 68 | 25 | 19 | 30 | 13 |

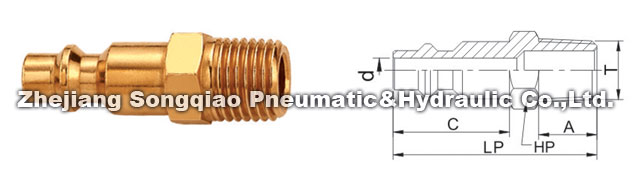

PARTNO. | LP | C | HEX2 | A | T | d |
LAM-02PM | 42 | 24 | 14 | 13 | 1/4 | 5 |
LAM-03PM | 42 | 24 | 17 | 13 | 3/8 | 5 |
LAM-04PM | 44 | 24 | 22 | 14 | 1/2 | 5 |

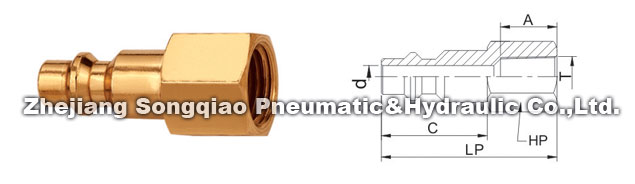

PARTNO. | LP | C | HEX2 | A | T | d |
LAM-02PF | 39 | 24 | 17 | 12 | 1/4 | 5 |
LAM-03PF | 40 | 24 | 19 | 13 | 3/8 | 5 |
LAM-04PF | 44 | 24 | 24 | 16 | 1/2 | 5 |

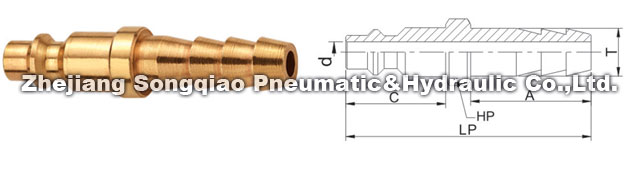

PARTNO. | LP | C | CP | A | T | d |
LAM-02PH | 59 | 24 | 19 | 30 | 9 | 5 |
LAM-03PH | 59 | 24 | 19 | 30 | 10.5 | 5 |
LAM-04PH | 59 | 24 | 19 | 30 | 13 | 5 |
